VSP-3AE Series: Reliable Semi-Automatic Pressure Control for Demanding Applications
Precise and reliable pressure control is essential to ensuring both performance and safety across industrial and laboratory processes. The VSP-3AE Series Pressure Control Panel from VIGOUR is purpose-built to deliver this level of control.
Featuring a robust semi-automatic design, the panel provides exceptional performance across a wide range of gases-from inert to highly corrosive media.
Key Features and Technical Excellence
- Semi-Automatic Operation Manual setpoint adjustment with automated pressure regulation.
- Wide Gas Compatibility Supports inert, reactive, flammable, oxidizing, and corrosive gases.
- High Inlet Pressure Capability Designed to handle inlet pressures up to 300 bar.
- Selectable Outlet Pressure Options Configurable outlet pressure (P2) up to 100 bar.
- Premium Materials Incorporates critical components made from Hastelloy® C276, Elgiloy®, and sealing options including Viton® or Kalrez®.
- Excellent Leak Integrity Ensures a superior leak rate to atmosphere of 1×10⁻⁸ mbar·L/s He.
Typical Applications
The VSP-3AE Series is an ideal choice for precision-critical environments, including:
- Component Testing
- Calibration Systems
- Laboratory Pressure Control
- High-Pressure Sampling
- Service & Test Equipment
Engineered for Versatility and Safety

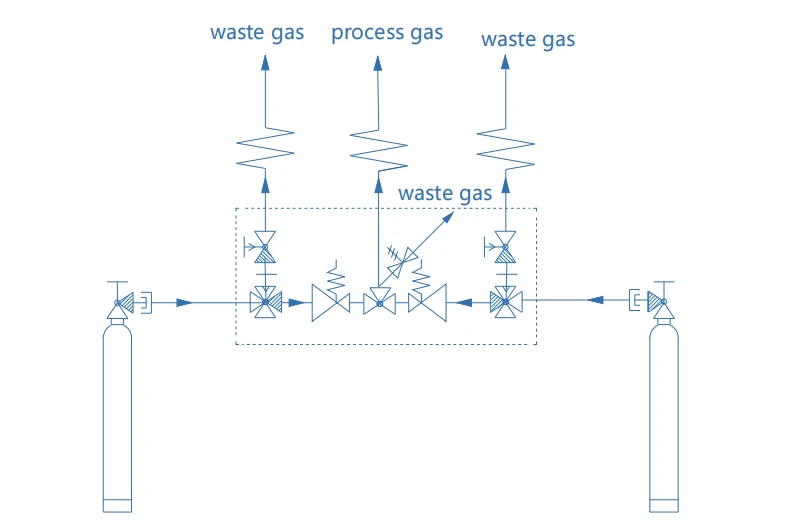

At the core of the VSP-3AE pressure control panel is the high-performance VSR-1E / VSR-6E Series single-stage pressure regulator. To ensure compatibility with diverse gases, two body material options are available:
- Chrome-plated brass body
Suitable for inert, reactive, flammable, and oxidizing gases up to grade 6.0 purity.
- 316L stainless steel body and bonnet
Designed for highly corrosive applications requiring maximum chemical resistance.
Safety is a primary focus. The system integrates diaphragm-type shut-off valves and supports inlet pressures up to 300 bar. It is rigorously tested for safe oxygen use, ensuring reliability even in the most demanding environments.
The modular design allows for easy installation in gas cylinder safety cabinets and supports future maintenance or system expansion.
Configurable to Your Needs
Every application presents unique challenges. VIGOUR offers extensive customization options for the VSP-3AE pressure control panel, including:
- Body material selection
- Inlet and outlet pressure configurations
- Valve options (with or without vent valve)
- Pressure indication: standard gauge or contact gauge
A Superior Choice for Precision Pressure Control
Combining robustness, safety, and high-precision performance, the VSP-3AE Series stands as a versatile and reliable solution for demanding gas applications.
Contact us to discuss customization options tailored to your specific operational requirements.
