Model
VSR-1ES
Introduction
|
• single stage gas pressure regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • 6 ports flexible configuration • Stable outlet pressure • Simple outlet pressure limitation by handwheel |
• Tested for use with oxygen Inlets / Outlets(can be chosen): DIN: Germany CGA: USA BSP: British GB: China UNI: Italy NF: French JIS: Japan F4: 1/4" NPT(F) M4: 1/4" NPT(M) 02: 1/8" Tube fitting 04: 1/4" Tube fitting 06: 3/8" Tube fitting 6M: 6mm Tube fitting 8M: 8mm Tube fitting TW6M: 6mm Weld tube TW8M: 8mm Weld tube |
Application
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 300 bar | |
| Outlet pressure P2 | VAC/2/4/8/10/20 bar | |
| Materials | ||
| Body regulator | SS316L / chrome plated brass | |
| Valve seat | PCTFE | |
| Diaphragm | Hastelloy® C276 | |
| O-ring | Viton® (FKM) | |
| (option)Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Inlets and Outlets | 1/8", 1/4"NPT(F) | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate | (to atmosphere) 1x10^-6 mbar I/s He | |
| (via seat) | Bubble-tight | |
| Flow capacity | Cv=0.07 | |
| Weight | 1.30kg | |

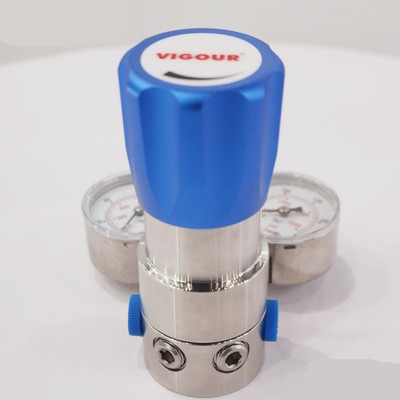

Product picture
VSR-2E
Introduction
|
• single stage gas pressure regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • 6 ports flexible configuration • Stable outlet pressure • Simple outlet pressure limitation by handwheel • Inlet filter |
• Tested for use with oxygen Inlets / Outlets(can be chosen): DIN: Germany CGA: USA BSP: British GB: China UNI: Italy NF: French JIS: Japan F4: 1/4" NPT(F) M4: 1/4" NPT(M) 02: 1/8" Tube fitting 04: 1/4" Tube fitting 06: 3/8" Tube fitting 6M: 6mm Tube fitting 8M: 8mm Tube fitting TW6M: 6mm Weld tube TW8M: 8mm Weld tube |
|
|
Application
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Technical parameters
| Type | single-stage |
| Inlet pressure P1 | max. 300 bar |
| Outlet pressure P2 | VAC/2/4/8/10/20/35/50 bar |
| Materials | |
| Body regulator | SS316L / chrome plated brass |
| Valve seat | PCTFE |
| Diaphragm | Hastelloy® C276 |
| O-ring | Viton® (FKM) |
| (option)Kalrez® (FFKM) | |
| Filter | SS 316L |
| Inlets and Outlets | 1/8", 1/4"NPT(F) |
| Temperature range | -30℃ to +74℃ |
| Leak rate | (to atmosphere) 1x10^-6 mbar I/s He |
| (via seat) | Bubble-tight |
| Flow capacity | Cv=0.08 |
| Weight | 1.25kg |
VSR-3
Introduction
|
• Pressure regulator, special design for manifold application • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases |
• 6 ports flexible configuration • Stable outlet pressure • Simple outlet pressure limitation by handwheel • Inlet filter • Tested for use with oxygen Inlets / Outlets(can be chosen): F4: 1/4" NPT(F) F6: 3/8" NPT(F) F8: 1/2" NPT(F) F12: 3/4" NPT(F) 08: 1/2" Tube fitting 12: 3/4" Tube fitting TW12M: 12mm Weld tube TW20M: 20mm Weld tube |
Application
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 300 bar | |
| Outlet pressure P2 | 2/4/8/10/20/35/50 bar | |
| Materials | ||
| Body regulator | SS316L / chrome plated brass | |
| Valve seat | PCTFE | |
| Diaphragm | Hastelloy® C276 | |
| O-ring | Viton® (FKM) | |
| (option)Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Inlets and Outlets | 1/8", 1/4"NPT(F) | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate | (to atmosphere) 1x10^-6 mbar I/s He | |
| (via seat) | Bubble-tight | |
| Flow capacity | Cv=1.0 | |
| Weight | 2.7kg | |
Product picture
VSR-6E
Introduction
|
• Diaphragm design high pressure piston regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • 6 ports flexible configuration • Stable outlet pressure • Simple outlet pressure limitation by handwheel • Inlet filter |
• Tested for use with oxygen Inlets / Outlets(can be chosen): DIN: Germany CGA: USA BSP: British GB: China UNI: Italy NF: French JIS: Japan F4: 1/4" NPT(F) M4: 1/4" NPT(M) 02: 1/8" Tube fitting 04: 1/4" Tube fitting 06: 3/8" Tube fitting 6M: 6mm Tube fitting 8M: 8mm Tube fitting TW6M: 6mm Weld tube TW8M: 8mm Weld tube |
Application
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 300 bar | |
| Outlet pressure P2 | 50/100/200 bar | |
| Materials | ||
| Body regulator | SS316L / chrome plated brass | |
| Valve seat | PCTFE | |
| Diaphragm | Hastelloy® C276 | |
| O-ring | Viton® (FKM) | |
| (option)Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Inlets and Outlets | 1/8", 1/4"NPT(F) | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate | (to atmosphere) 1x10^-6 mbar I/s He | |
| (via seat) | Bubble-tight | |
| Flow capacity | Cv=0.15 | |
| Weight | 1.20kg | |
Product picture
A Single Stage Gas Pressure Regulator is a common type of pressure control device. It reduces the high incoming gas pressure to a stable, lower output pressure in a single step. The working principle involves gas flowing from a high-pressure source into the regulator, where the internal spring and valve structure control the gas flow, ensuring a constant output pressure.
Common Issues
Cause: Insufficient regulator capacity or a malfunction in the internal valve or spring.
Solution: Check the regulator capacity and ensure the valve and spring are functioning properly.
Cause: Worn-out seals or faulty connections.
Solution: Inspect seals and connections, and replace any damaged components.
Cause: Clogged inlet orifice or filter.
Solution: Clean or replace the inlet orifice or filter.
Cause: A malfunctioning adjustment knob or mechanism.
Solution: Inspect and repair or replace the adjustment components.
contrast:
|
