Model
|
VSR-1ET |
VSR-1ETG |
VSR-3T |
|
VSR-1ETG-BV |
VSR-2T |
VSR-2TG |
|
VSR-3TG |
VSR-4T |
VSR-5T |
VSR-1ET
Introduction
• Wall-mounting tapping points • VSR-1EL series single-stage pressure regulator gas stick • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Diaphragm type shut-off vlaves • Suitable for inlet pressure up to 100 bar • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 100 bar | |
| Outlet pressure P2 | 2/4/10/20/50 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.07 | |
| Weight | 2.5kg | |

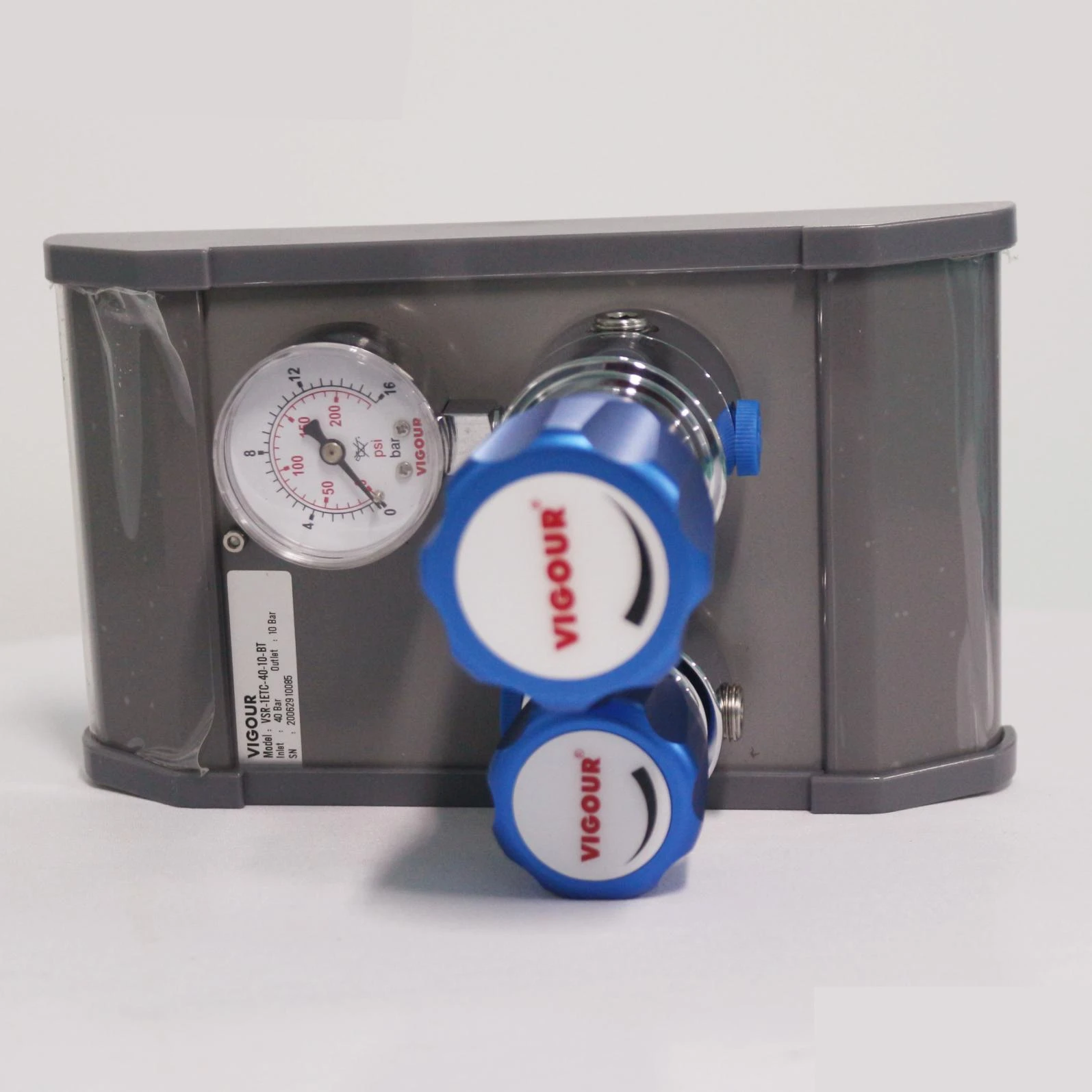

Product picture
VSR-1ETG
Introduction
• Wall-mounting tapping points • VSR-1EL series single-stage regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Diaphragm type shut-off vlaves • Suitable for inlet pressure up to 100 bar • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 100 bar | |
| Outlet pressure P2 | 2/4/10/20/50 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.07 | |
| Weight | 4.1~5.7kg | |

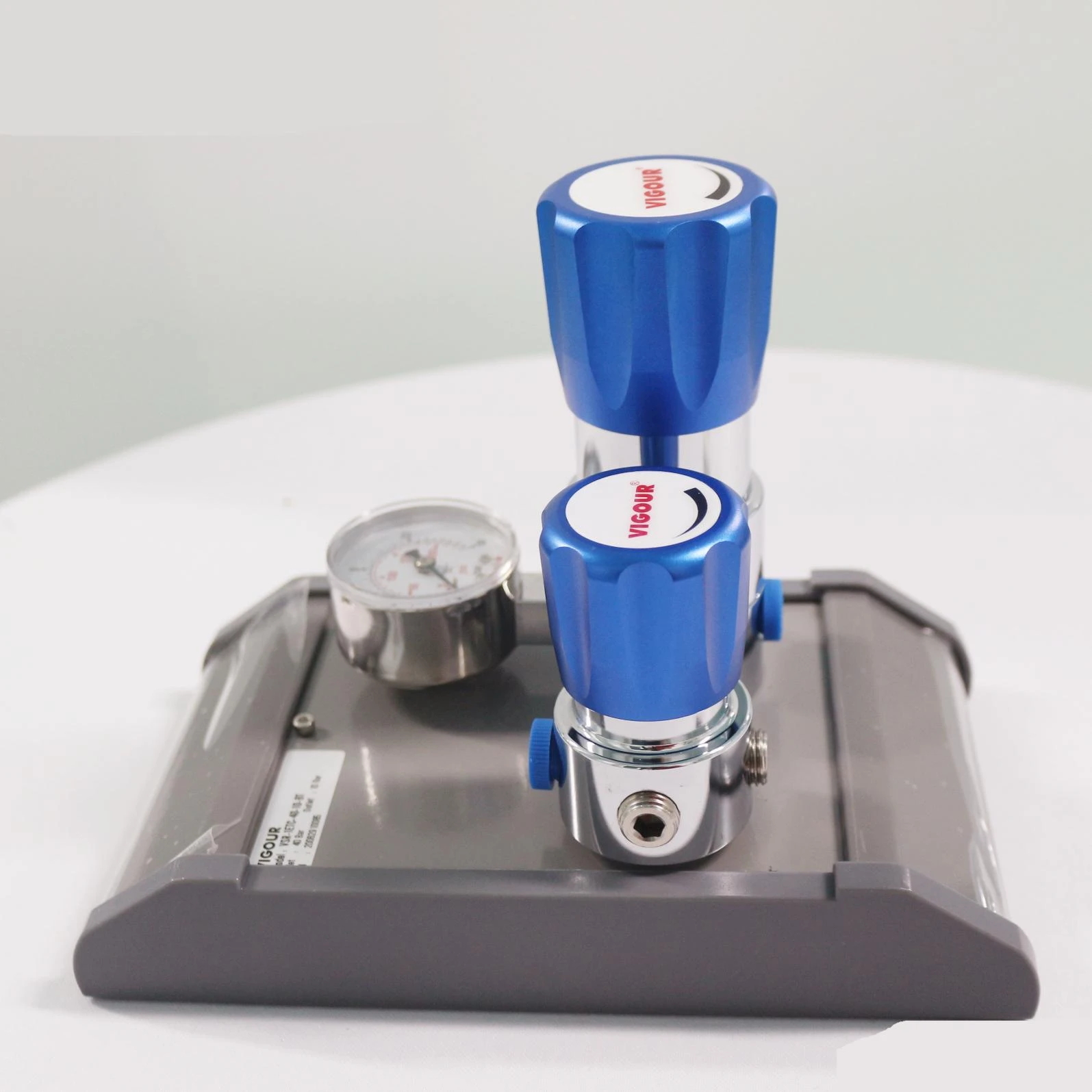

Product picture
VSR-1ETG-BV
Introduction
• Wall-mounting tapping points • VSR-1EL series single-stage regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Diaphragm type shut-off valves • Suitable for inlet pressure up to 100 bar • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Samping Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 100 bar | |
| Outlet pressure P2 | 2/4/10/20/50 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.07 | |
| Weight | 4.1~5.7kg | |
VSR-2T
Introduction
• Wall-mounting tapping points • VSR-2EL series single-stage regulator • Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Diaphragm type shut-off vlaves • Suitable for inlet pressure up to 100 bar • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 100 bar | |
| Outlet pressure P2 | 2/4/10/20/35/50 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | (Outlet pressure:2/4/10/20 bar) Cv=0.28 | |
| (Outlet pressure | 35/50 bar) Cv=0.08 | |
| Weight | 3.5kg | |
VSR-2TG
Introduction
• Wall-mounting tapping points • VSR-2EL series single-stage regulator • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Diaphragm type shut-off vlaves • Suitable for inlet pressure up to 100 bar • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
| Inlet pressure P1 | max. 300 bar |
| Outlet pressure P2 | 2/4/10/20/35/50 bar |
| Materials | |
| Body regulator and valves | see ordering info |
| Valve seat (regulator) | PCTFE |
| (shut-off valve) | PCTFE |
| Diaphragm (regulator) | Hastelloy® C276 |
| (valve) | Elgiloy® |
| O-ring | Viton® (FKM) |
| (option) Kalrez® (FFKM) | |
| Filter | SS 316L |
| Temperature range | -30℃ to +74℃ |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He |
| (via seat) | 1x10-6 mbar I/s He |
| Flow capacity | (Outlet pressure:2/4/10/20 bar):Cv=0.28 |
| (Outlet pressure | 35/50 bar): Cv=0.08 |
| Weight | 4.5~6.9kg |
VSR-3T
Introduction
• Bench-mounting tapping points • VSR-1EL series single-stage pressure regulator gas stick • VDV2 series diaphragm valve • Brass chromed plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Suitable for inlet pressure up to 60 bar • Test for use with oxgen |
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 60 bar | |
| Outlet pressure P2 | 2/4/10/20 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.12 | |
| Weight | 1.6kg | |

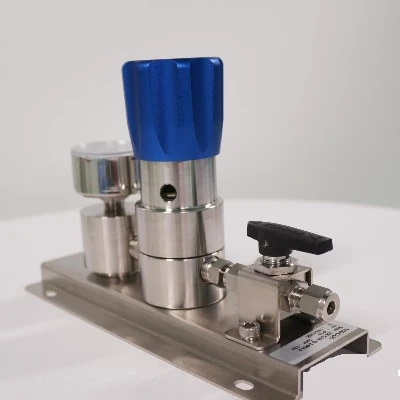

Product picture
VSR-3TG
Introduction
• Wall-mounting tapping points • VSR-1EL series single-stage regulator • VDV2 series diaphragm valve • Brass chromed plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Suitable for inlet pressure up to 60 bar • Test for use with oxgen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 60 bar | |
| Outlet pressure P2 | 2/4/10/20 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.12 | |
| Weight | 1.6kg | |
VSR-4T
Introduction
• Panel-mounting tapping points • VSR-1EL series single-stage regulator • VDV2 series diaphragm valve • Brass chromed plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body and bonnet for corrosive gases • Modular design • Suitable for inlet pressure up to 60 bar • Test for use with oxgen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 60 bar | |
| Outlet pressure P2 | 2/4/10/20 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.12 | |
| Weight | 0.8 KG | |

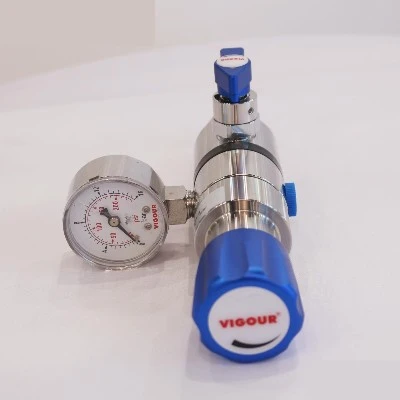

Product picture
VSR-5T
Introduction
• Wall-mounting tapping points • VSR-1EL series single-stage regulator • Aluminum for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Modular design • Diaphragm type shut-off valve • Suitable for inlet pressure up to 60 bar • Test for use with oxgen • Compact design tapping point
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • Service & Test Equipme |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 60 bar | |
| Outlet pressure P2 | 2/4/10/20 bar | |
| Materials | ||
| Body regulator and valves | see ordering info | |
| Valve seat (regulator) | PCTFE | |
| (shut-off valve) | PCTFE | |
| Diaphragm (regulator) | Hastelloy® C276 | |
| (valve) | Elgiloy® | |
| O-ring | Viton® (FKM) | |
| (option) Kalrez® (FFKM) | ||
| Filter | SS 316L | |
| Temperature range | -30℃ to +74℃ | |
| Leak rate (to atmosphere) | 1x10^-8 mbar I/s He | |
| (via seat) | 1x10-6 mbar I/s He | |
| Flow capacity | Cv=0.07 | |
| Weight | 2.5kg | |

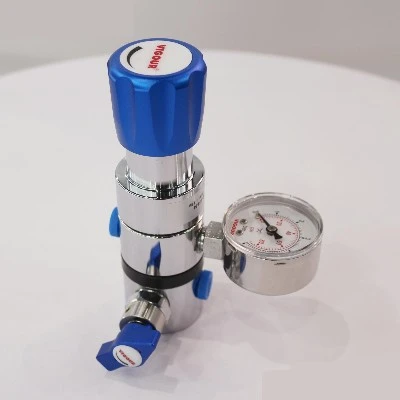

Product picture
Pressure Regulator Gas Stick – A Simple Explanation
In simple terms: The "end control panel" for gases, fixed to a wall or table like an electrical socket. With just a reach, you can adjust the gas pressure, specially designed to manage any gas that refuses to cooperate.
Structure:
- Core two-piece set: Pressure regulator (controls the pressure) + diaphragm valve (controls the gas flow), combined into one "regulating stick."
- Multiple interfaces: Includes an inlet, outlet, pressure gauge interface, and relief valve, and can also connect to sensors or alarms.
- Pressure monitoring: Comes with a pressure gauge or digital display to show real-time pressure values.
Analogy:
It's like the "water, electricity, and gas three-way socket" in a lab – just plug in the gas cylinder, and you can adjust pressure, turn the flow on/off, and monitor everything in one go.
Laboratory workstations: Provides stable gas supply to analytical instruments (such as gas chromatographs), with easy on/off control.
Clean rooms: Controls the terminal pressure for high-purity gases (like helium, nitrogen) to avoid contamination.
Industrial workshops: Fixed near equipment for easy adjustment of pneumatic tool pressures.
Hospital oxygen walls: Centralized management of oxygen supply to patient rooms, safe and aesthetically pleasing.
3. How to use it?
Core functions: Pressure regulation + On/off control + Monitoring – all done in three easy steps!
Steps for use:
Installation:
Mount on the wall using a bracket, or place on the table with a base, or even suspend it under the ceiling pipes.
Positioning rule: Install where it's easy to reach, and avoid high temperatures or vibrations.
Gas Pressure Regulation:
Connect the inlet to a gas cylinder or pipeline, and the outlet to equipment (such as burners or reactors).
Turn the regulator knob and observe the pressure gauge, adjusting to the desired pressure (e.g., reducing from 50 bar to 5 bar).
On/Off Control:
Flip the diaphragm valve handle like a faucet to "open/close" the gas flow, turning it on or off as needed.
Expansion features:
Connect an alarm to the additional interface (for pressure abnormalities) or link it to a PLC for automatic pressure data recording.
Common Issues
Cause: Diaphragm aging or cracking, or valve core contamination with grease.
Solution: Replace the diaphragm and flush the valve with oil-free gas.
Cause: The gauge face is damaged from vibration, or the internal spring has failed.
Solution: Handle with care, recalibrate regularly, or replace the gauge.
Cause: Particles or impurities from the pipeline entering the gas stick.
Solution: Install a filter at the inlet and periodically clean the interfaces.
Cause: Loose bracket screws or an insufficiently heavy base.
Solution: Secure the wall bracket with expansion screws and add weight to the base for stability.
The Pressure Regulator Gas Stick is like a "desktop switch" for gases – install it wherever you need gas, adjust pressure and flow with a glance, and control everything easily.
When choosing a model, ask the manufacturer: "I need one for laboratory argon gas, pressure XX bar, wall-mounted, and with a digital display – do you have one in stock?"
Hot Tags: pressure regulator gas stick, China pressure regulator gas stick manufacturers, suppliers, gas regulator for specification, gas regulator for engineering, commercial gas regulator, Brass Gas Pressure Regulator corrosion resistant nitrogen, gas regulator for grilling, 700bar Pressure Gas Regulator custom custom design
