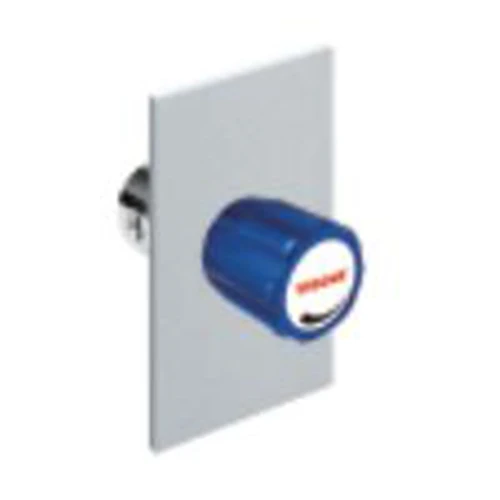

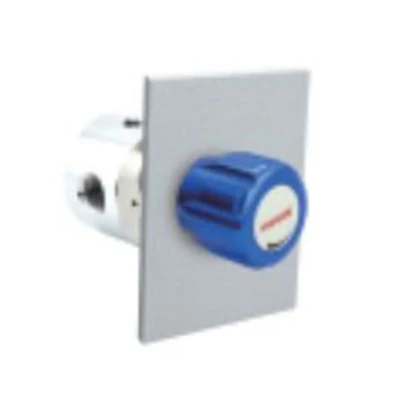

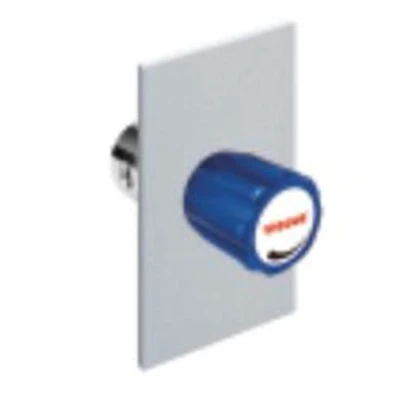

Panel Mount Pressure Regulator

Simply put, it's a "pressure control manager" fixed on a device panel that reduces high-pressure gas to a safe, usable pressure and keeps it stable.

Features:

• Mounted on the panel: Fixed to the panel surface like a wall socket, saving space and making operation easy while keeping the setup neat and tidy.
• High to low pressure: It can reduce input pressure as high as 300 bar to an output pressure of up to 200 bar (specific values depend on the model).
• Precise control: Adjust the pressure manually using a knob or screw, and with a control system, it can automatically adjust.

Analogy: Think of it like a "pressure valve" for a faucet-mounted on the wall to control the water flow, but here it's for controlling gas flow pressure.

Core Purpose: Pressure reduction + pressure stabilization, suitable for scenarios where precise gas pressure control is needed.

Steps:

• Install on the panel:

Cut a hole in the device panel and secure the regulator, ensuring it's "set" into the panel with the inlet facing outward. It's ideal for industrial equipment, lab instruments, pneumatic control cabinets, and more.

• Connect the pipes:

The inlet connects to a high-pressure gas source (e.g., gas cylinders, compressors), and the outlet connects to downstream equipment (e.g., robotic arms, reaction vessels).

Ensure the fitting sizes match (e.g., G-thread, NPT-thread).

• Adjust the pressure:

Turn the top knob on the regulator, monitor the pressure gauge, and set it to the desired outlet pressure (e.g., reducing from 300 bar to 50 bar).

• Important: The outlet pressure should not exceed 200 bar (specific limits depend on the model, check with the manufacturer).
• Use with control systems:

You can connect it with pressure sensors and PLCs (automated controllers) for automatic pressure regulation and alarm functions.

Advantages:

• Space-saving: No need for wall mounts or separate brackets, providing a cleaner, more integrated solution.
• Easy to operate: The pressure adjustment knob is right on the panel, making it simple to adjust.
• Safety: The high-pressure section is hidden behind the panel, reducing the risk of accidental contact.

Issue 1: Pressure won't increase or stabilize

• Cause: Insufficient inlet pressure, worn valve springs, or damaged internal diaphragm.
• Solution: Check the gas source pressure, replace the spring or diaphragm.

Issue 2: Gas leakage (at the interface or panel)

• Cause: Panel mounting hole isn't sealed, or threaded connections are rusty or loose.
• Solution: Use sealant or gaskets, tighten the connections.

Issue 3: Vibration causing loosening

• Cause: Large vibrations during equipment operation, causing the regulator to loosen.
• Solution: Reinforce the panel and add vibration-dampening pads.

Issue 4: Outlet pressure exceeds the limit (over 200 bar)

• Cause: Incorrect adjustment of the pressure knob or improper regulator selection.
• Solution: Immediately shut off the gas source and contact the manufacturer for a higher pressure-rated model.

A panel-mounted pressure regulator is a "precision pressure reducer" for high-pressure gases, saving space and offering convenience. Just make sure not to exceed the pressure limit, check for leaks, and tighten screws regularly. When selecting a model, simply ask the manufacturer: "I need 300 bar in, and XX bar out-what type of fitting should I use?"
