Model
VSR-12HL
Introduction
• Low pressure high flow regulator • Brass chrome plated body for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body for pharmaceutical, food, and beverage application • 4 ports flexible configuration • Stable outlet pressure • Tested for use with oxygen • Large seat and diaphragm areas provide high capacity with sensitive control of delivery pressure with low falloff
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • Service & Test Equipment • hydrogen energy resource |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 35 bar | |
| Outlet pressure P2 | 1/2/4/8/10/20 bar | |
| Materials | ||
| Body regulator | SS316L / chrome plated brass | |
| Valve seat | EPDM (Viton® option) | |
| Diaphragm | PTFE+Buna-N | |
| Inlets and Outlets | see ordering info | |
| Temperature range | -15℃ to +74℃ | |
| Leak rate | Bubble-tight | |
| Flow capacity | Cv=3.1 | |
| Weight | approx. 2.5kg / 3.7kg | |
Product picture
VSR-4L
Introduction
• Low pressure high flow regulator • Brass chrome plated body for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0 • Stainless steel 316L body for pharmaceutical, food, and beverage application • 4 ports flexible configuration • Stable outlet pressure • Tested for use with oxygen
|
|
Application
• Component Testing • Calibration Systems • Laboratory Pressure Control • High Pressure Sampling Systems • Service & Test Equipment |
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 35 bar | |
| Outlet pressure P2 | 2/3/4/8/10/20 bar | |
| Materials | ||
| Body regulator | SS316L / chrome plated brass | |
| Valve seat | EPDM (Buna-N option) | |
| Diaphragm | PTFE+Neoprene | |
| Inlets and Outlets | see ordering info | |
| Temperature range | -15℃ to +74℃ | |
| Leak rate | bubble-tight | |
| Flow capacity | Cv=5.1 | |
| Weight | 4.1kg | |
Product picture
VSR-10L
Introduction
• Low pressure high flow regulator • Body Material: 316L • High precision, high sensitivity • 4 ports flexible configuration • Stable outlet pressure • Tested for use with oxygen
|
|
Application
• Food and pharmaceutical industry • Petroleum and petrochemical industry • Integrated equipment matching |
Technical parameters
| Type | single-stage |  |
| Inlet pressure P1 | max. 20 bar | |
| Outlet pressure P2 | 2/3/4/7/10 bar | |
| Materials | ||
| Body regulator | SS 316L | |
| Valves seat | EPDM | |
| Diaphragm | PTFE+Neoprene | |
| Inlets and Outlets | see ordering info | |
| Temperature range | -15℃ to +74℃ | |
| Leak rate | Bubble-tight | |
| Flow capacity | Cv=10 | |
| Weight | 14.2kg | |

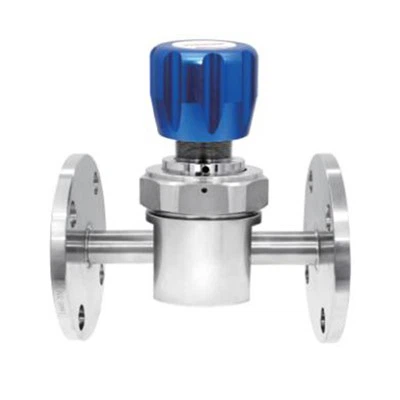

VSR-10PH
Introduction
• Low pressure, large flow pressure reducer
• Stainless steel 316L body
• High precision, high sensitivity
• 2 or 3 ports configuration
• Stable output pressure
• Suitable for oxygen
• Seals conform to USP Class VI and BPE design
• Suitable for biotechnology and pharmaceutical applications
Application
• Food and pharmaceutical industry
• Petroleum and petrochemical industry
• Integrated equipment matching
Technical parameters
| Type | single-stage |
|
| Inlet pressure P1 | max. 20 bar | |
| Outlet pressure P2 | 2/3/4/7/10 bar | |
| Materials | ||
| Body regulator | 316L | |
| Valve seat | EPDM | |
| Diaphragm | PTFE+Neoprene | |
| Inlets and Outlets | SS316L / chrome plated brass | |
| Temperature range | -15℃ to +74℃ | |
| Leak rate | Bubble-tight | |
| Flow capacity | Cv=10.0 | |
| Weight | 18.5kg | |
